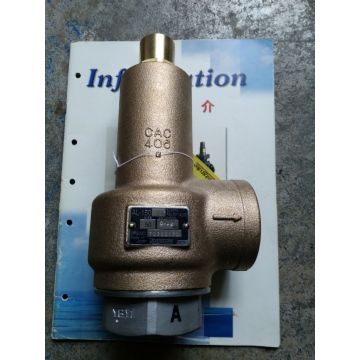

日本耀希达凯安全阀AL-15 AL-15H AL-15L AL-15R AL-15ML
安全阀
Safety & Relief valves Selection
型号 |
AL-15 |
AL-15H |
AL-15L |
AL-15R |
AL-15ML |
安全阀
|
 |
 |
 |
 |
 |
Features |
LIFT TYPE |
| |
RUST RESISTANCE |
| |
标准型 |
高压型 |
带手柄 |
泄放阀 |
CLOSED LEVER |
| Specification |
使用流体 |
蒸气,空气，水，油 |
蒸气,空气 |
水，油 |
空气，水，油 |
| |
设置压力 |
0.05-1.0MPa
{0.5-10kgf/cm2G} |
1.0-1.6MPa
{10-16kgf/cm2G} |
0.05-1.0MPa
{0.5-10kgf/cm2G} |
| |
最高温度 |
<*> 220 ℃ |
120 ℃ |
<*>150 ℃ |
| |
连接型式 |
JIS Rc(PT 螺纹) |
| 材料 |
阀体 |
铜 |
| |
主阀 |
不锈钢 |
| |
阀座 |
不锈钢 |
尺寸 |
L*H1(mm):W(kg) |
L*H1(mm):W(kg) |
L*H1(mm):W(kg) |
L*H1(mm):W(kg) |
L*H1(mm):W(kg) |
15A |
34*40 :0.7 |
36*42 :0.8 |
34*40 :0.7 |
34*40 :1.0 |
34*40 :0.8 |
20A |
38*43 :0.8 |
38*47 :0.9 |
38*43 :0.8 |
38*43 :1.1 |
38*43 :0.9 |
25A |
43*51.5:1.2 |
46*56 :1.3 |
43*51.5:1.2 |
43*51.5:1.4 |
43*51.5:1.3 |
32A |
50*61.5:1.8 |
54*62 :1.9 |
50*61.5:1.8 |
50*61.5:2.1 |
50*61.5:1.9 |
40A |
60*60 :2.7 |
63*67 :2.9 |
60*60 :2.7 |
60*60 :3.1 |
60*60 :2.9 |
50A |
75*76 :4.7 |
77*80 :5.0 |
75*76 :4.7 |
75*76 :5.1 |
75*76 :4.9 |
| |
 |
 |
 |
 |
Remarks |
<*> 120 degree(C) for liquid. |
|
|
|
 |
