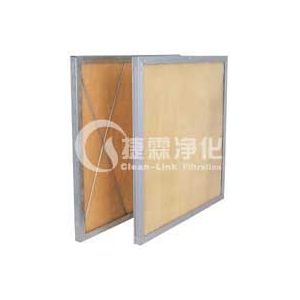

·采用玻璃长纤维，以非织物方式叠合制成，外以铝扩张网固定，不易变形；
·滤网的抗化学性佳,耐热性强，吸湿性低；
·难燃性，可耐高温300℃；
·过滤高温烘房中产生的焦油、煤烟、灰尘等颗粒以防破坏物品表面油漆质量；
Speciality:
l It is made from the long fiberglass by non-woven folding way. The outside is fixed by aluminum expended mesh in order that the outlook does not easily change;
l Anti-chemical, find heat-resistance, low hygroscopy,
l flame retardancy, and the Temp. resistance up to 300°C;
l Filtrate the tar, coot and dust from high-temperature dryer which will damage paint quality.
用途
用于热风式高温烤炉、涂装厂高温烤炉。
Using
l High temperature hot blast oven, high temperature oven for painting factory
性能参数 Specification:
|
类型 Type |
尺寸W*H D Size W*H*D |
额定风量 (m3/h) Rated air flow |
初阻力 ( Pa ) Initial resistance |
终阻力 ( Pa ) Final resistance |
温度 （℃） Temp |
平均计重效率 (%) Avg.arrestance |
|
宽*高*深 Width*height*depth ( mm ) |
||||||
|
G3 |
500*500*15mm |
1000 |
45 |
250 |
300 |
90 |
|
G3 |
500*500*25mm |
1000 |
45 |
250 |
300 |
90 |
|
G3 |
595*595*96mm |
1700 |
60 |
300 |
300 |
90 |
|
AI100W |
500*500*20mm |
|
|
|
240 |
|
注：可按客户要求订做
