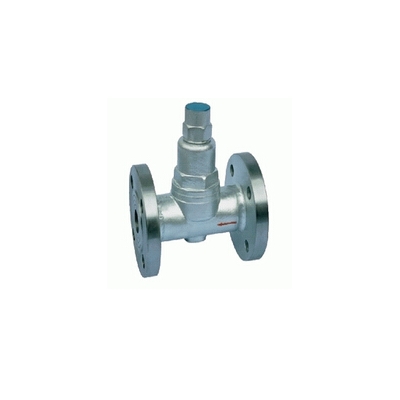

CS47H可调双金属片疏水阀结构独特、性能优良、排水量大、漏汽温度可调节，过冷度在2℃左右，可能排除大量冷空气和其它不凝汽体，不会产生汽堵现象。可更换内件，易于维修和调整。
【CS47H可调双金属片疏水阀】主要性能规范
|
型号Type/项目Item |
CS17H-16C |
CS17H-25 |
CS17H-40 |
单位 |
|
公称压力 |
1.6 |
2.5 |
4.0 |
Mpa |
|
壳体试验压力 |
2.4 |
3.8 |
6.0 |
|
|
最高工作压力 |
1.6 |
2.5 |
4.0 |
|
|
最高工作温度Max |
203 |
220 |
247 |
℃ |
|
最高允许温度Max |
425 |
425 |
425 |
|
|
工作介质 |
蒸汽、凝结水Stemam |
|||
【CS47H可调双金属片疏水阀】主要零件材料
|
型号Type/项目Item |
CS 17 H、CS47H、CS 67 H 16 C、25C、40 C |
|
阀体Body |
碳钢Carbon Steel |
|
阀盖Donner |
|
|
阀芯 |
不锈钢Atainless Steel |
|
阀座Seat |
不锈钢Atainless Steel |
|
热敏元件 |
热双金属片 |
|
过滤器Percolator |
不锈钢Atainless Steel |
主要外型及连接尺寸
|
型号 |
DN |
螺纹连接 |
承接焊连接 |
法兰连接 |
||||||||||||||
|
RC |
L |
H |
W |
L |
H |
W |
d’ |
T |
L |
H |
D |
K |
d |
C |
F |
N-φ |
||
|
(mm) |
(mm) |
(mm) |
||||||||||||||||
|
CS17H-16C |
15 |
1/2 |
100 |
92 |
82 |
100 |
92 |
82 |
22 |
12 |
150 |
92 |
95 |
65 |
45 |
14 |
2 |
4-14 |
|
20 |
3/4 |
100 |
92 |
82 |
100 |
92 |
82 |
27 |
12 |
150 |
92 |
105 |
75 |
55 |
14 |
2 |
4-14 |
|
|
25 |
1 |
100 |
92 |
82 |
100 |
92 |
82 |
34 |
12 |
160 |
92 |
115 |
85 |
65 |
14 |
2 |
4-14 |
|
|
32 |
11/4 |
165 |
140 |
115 |
165 |
140 |
115 |
42 |
13 |
200 |
140 |
135 |
100 |
78 |
16 |
2 |
4-18 |
|
|
40 |
11/2 |
165 |
140 |
115 |
165 |
140 |
115 |
48 |
13 |
200 |
140 |
145 |
110 |
85 |
16 |
3 |
4-18 |
|
|
50 |
2 |
175 |
140 |
115 |
175 |
140 |
115 |
61 |
14 |
230 |
140 |
160 |
125 |
100 |
16 |
3 |
4-18 |
|
|
CS17H-25 |
15 |
1/2 |
100 |
92 |
82 |
100 |
92 |
82 |
22 |
12 |
150 |
92 |
95 |
65 |
45 |
14 |
2 |
4-14 |
|
20 |
3/4 |
100 |
92 |
82 |
100 |
92 |
82 |
27 |
12 |
150 |
92 |
105 |
75 |
55 |
14 |
2 |
4-14 |
|
|
25 |
1 |
100 |
92 |
82 |
100 |
92 |
82 |
34 |
12 |
160 |
92 |
115 |
85 |
65 |
14 |
2 |
4-14 |
|
|
32 |
11/4 |
165 |
140 |
115 |
165 |
140 |
115 |
42 |
13 |
200 |
140 |
135 |
100 |
78 |
16 |
2 |
4-18 |
|
|
40 |
11/2 |
165 |
140 |
115 |
165 |
140 |
115 |
48 |
13 |
230 |
140 |
145 |
110 |
85 |
16 |
3 |
4-18 |
|
|
50 |
2 |
175 |
140 |
115 |
175 |
140 |
115 |
61 |
14 |
230 |
140 |
160 |
125 |
100 |
16 |
3 |
4-18 |
|
|
CS17H-40 |
15 |
1/2 |
100 |
92 |
82 |
100 |
92 |
82 |
22 |
12 |
250 |
92 |
95 |
65 |
45 |
14 |
2 |
4-14 |
|
20 |
3/4 |
100 |
92 |
82 |
100 |
92 |
82 |
27 |
12 |
150 |
92 |
105 |
75 |
55 |
14 |
2 |
4-14 |
|
|
25 |
1 |
100 |
92 |
82 |
100 |
92 |
82 |
34 |
12 |
160 |
92 |
115 |
85 |
65 |
14 |
2 |
4-14 |
|
|
32 |
11/4 |
165 |
140 |
115 |
165 |
140 |
115 |
42 |
13 |
200 |
140 |
135 |
100 |
78 |
16 |
2 |
4-18 |
|
|
40 |
11/2 |
165 |
140 |
115 |
165 |
140 |
115 |
48 |
13 |
200 |
140 |
145 |
110 |
85 |
16 |
3 |
4-18 |
|
|
50 |
2 |
175 |
140 |
115 |
175 |
140 |
115 |
61 |
14 |
230 |
140 |
160 |
125 |
100 |
16 |
3 |
4-18 |
|
