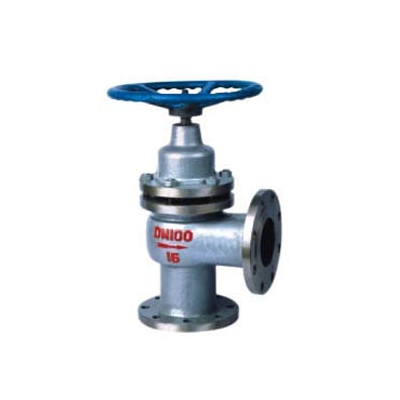

【U44SM角式柱塞阀】主要外形连接尺寸
|
DN(mm)/ |
U44SM-16C(P) UJ44H-16C．P．R |
|||||||||||||||
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
90 |
95 |
100 |
105 |
115 |
125 |
145 |
155 |
175 |
200 |
225 |
275 |
325 |
375 |
425 |
475 |
|
H |
190 |
210 |
220 |
250 |
280 |
300 |
320 |
370 |
420 |
440 |
530 |
610 |
730 |
850 |
970 |
1100 |
|
W |
100 |
100 |
120 |
140 |
160 |
180 |
200 |
240 |
280 |
320 |
350 |
400 |
520 |
640 |
760 |
900 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
405 |
460 |
520 |
580 |
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
|
D2 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
155 |
188 |
210 |
265 |
295 |
375 |
435 |
485 |
|
b |
12 |
12 |
12 |
13 |
13 |
13 |
15 |
17 |
17 |
19 |
21 |
23 |
27 |
28 |
30 |
32 |
|
Z-φd |
4-14 |
4-14 |
4-14 |
4-18 |
4-18 |
4-18 |
4-18 |
8-18 |
8-18 |
8-18 |
8-23 |
12-23 |
12-25 |
12-25 |
16-25 |
16-30 |
【U44SM角式柱塞阀】主要外形连接尺寸
|
DN(mm)/ |
U44SM-25（P） UJ44H-25C．P．R |
|||||||||||||||
|
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
L |
90 |
95 |
100 |
105 |
115 |
125 |
145 |
155 |
175 |
200 |
225 |
275 |
325 |
375 |
425 |
475 |
|
H |
190 |
210 |
230 |
260 |
260 |
290 |
320 |
370 |
420 |
460 |
530 |
610 |
730 |
850 |
970 |
1100 |
|
W |
100 |
100 |
110 |
140 |
160 |
180 |
200 |
240 |
280 |
320 |
350 |
400 |
520 |
640 |
760 |
900 |
|
D |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
300 |
360 |
425 |
485 |
550 |
610 |
|
D1 |
65 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
|
D2 |
45 |
55 |
65 |
78 |
85 |
100 |
120 |
135 |
160 |
188 |
218 |
282 |
345 |
408 |
465 |
535 |
|
b |
14 |
14 |
14 |
15 |
15 |
170 |
19 |
19 |
21 |
25 |
27 |
31 |
33 |
36 |
40 |
44 |
|
Z-φd |
4-14 |
4-14 |
4-14 |
4-18 |
4-18 |
4-18 |
8-18 |
8-18 |
8-23 |
8-25 |
8-25 |
12-25 |
12-30 |
16-30 |
16-34 |
16-34 |
