WA42Y波纹管平衡式安全阀适用于工作温度≤200℃存在不稳定背压或有毒、腐蚀性介质的设备或管路上，作为超压保护装置。
【WA42Y波纹管平衡式安全阀】主要零部件材料：
|
NO. |
零件名称 |
WA42Y-C型材料 |
WA42Y-P型材料 |
WA42Y-R型材料 |
|
1 |
阀体 |
WCB |
ZG1Cr18Ni8Ti,304 |
CF8M |
|
2 |
阀座 |
2Cr13 |
1Cr18Ni8Ti |
316 |
|
3 |
调节圈 |
2Cr13 |
1Cr18Ni8Ti |
0Cr18Ni12Mo2Ti |
|
4 |
阀瓣 |
2Cr13 |
1Cr18Ni8Ti |
316 |
|
5 |
反冲盘 |
2Cr13 |
1Cr18Ni8Ti |
316 |
|
6 |
波纹管 |
304 |
304 |
316 |
|
7 |
导向套 |
2Cr13 |
1Cr18Ni8Ti |
0Cr18Ni12Mo2Ti |
|
8 |
阀盖 |
ZG230-450 |
ZG230-450 |
ZG230-450 |
|
9 |
弹簧 |
50CrVA |
50CrVA包覆氟塑料 |
50CrVA包覆氟塑料 |

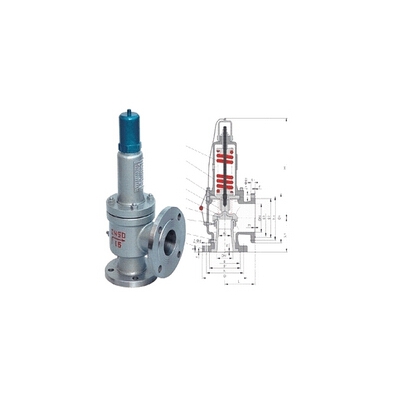

【WA42Y波纹管平衡式安全阀】外形尺寸和连接尺寸：
|
型号 |
公称通径 |
do |
D |
K |
g |
g1 |
b |
f |
f1 |
Z-ød |
L |
L1 |
≈H |
|
WA42Y-16 |
25 |
16 |
115 |
85 |
|
65 |
16 |
2 |
|
4-14 |
110 |
95 |
378 |
|
32 |
20 |
140 |
100 |
|
78 |
18 |
2 |
|
4-18 |
115 |
100 |
378 |
|
|
40 |
25 |
150 |
110 |
|
85 |
18 |
3 |
|
4-18 |
120 |
110 |
406 |
|
|
50 |
32 |
165 |
125 |
|
100 |
20 |
3 |
|
4-18 |
135 |
120 |
450 |
|
|
65 |
40 |
185 |
145 |
|
120 |
20 |
3 |
|
4-18 |
160 |
140 |
520 |
|
|
80 |
50 |
200 |
160 |
|
135 |
20 |
3 |
|
8-18 |
170 |
135 |
525 |
|
|
100 |
65 |
220 |
180 |
|
155 |
22 |
3 |
|
8-18 |
195 |
175 |
690 |
|
|
125 |
80 |
250 |
210 |
|
185 |
22 |
3 |
|
8-18 |
210 |
190 |
857 |
|
|
150 |
100 |
285 |
240 |
|
210 |
24 |
3 |
|
8-23 |
255 |
230 |
838 |
|
|
200 |
125 |
340 |
295 |
|
265 |
26 |
3 |
|
12-23 |
300 |
260 |
992 |
|
|
WA42Y-25 |
25 |
16 |
115 |
85 |
|
65 |
16 |
2 |
|
4-14 |
110 |
95 |
378 |
|
32 |
20 |
140 |
100 |
|
78 |
18 |
2 |
|
4-18 |
115 |
100 |
378 |
|
|
40 |
25 |
150 |
110 |
|
85 |
18 |
3 |
|
4-18 |
120 |
110 |
406 |
|
|
50 |
32 |
165 |
125 |
|
100 |
20 |
3 |
|
4-18 |
135 |
120 |
450 |
|
|
65 |
40 |
185 |
145 |
|
120 |
22 |
3 |
|
8-18 |
160 |
140 |
520 |
|
|
80 |
50 |
200 |
160 |
|
135 |
22 |
3 |
|
8-18 |
170 |
135 |
525 |
|
|
100 |
65 |
230 |
190 |
|
160 |
24 |
3 |
|
8-23 |
195 |
175 |
690 |
|
|
125 |
80 |
270 |
220 |
|
188 |
28 |
3 |
|
8-26 |
210 |
190 |
780 |
|
|
150 |
100 |
300 |
250 |
|
218 |
30 |
3 |
|
8-26 |
255 |
230 |
838 |
|
|
200 |
125 |
360 |
310 |
|
278 |
34 |
3 |
|
12-26 |
300 |
260 |
992 |
|
|
WA42Y-40 |
25 |
16 |
115 |
85 |
58 |
65 |
16 |
2 |
4 |
4-14 |
110 |
95 |
378 |
|
32 |
20 |
140 |
100 |
66 |
78 |
18 |
2 |
4 |
4-18 |
115 |
100 |
378 |
|
|
40 |
25 |
150 |
110 |
76 |
85 |
18 |
3 |
4 |
4-18 |
120 |
110 |
406 |
|
|
50 |
32 |
165 |
125 |
88 |
100 |
20 |
3 |
4 |
4-18 |
135 |
120 |
450 |
|
|
65 |
40 |
185 |
145 |
110 |
120 |
22 |
3 |
4 |
8-18 |
160 |
140 |
520 |
|
|
80 |
60 |
200 |
160 |
121 |
135 |
24 |
3 |
4 |
8-18 |
170 |
135 |
525 |
|
|
100 |
65 |
235 |
190 |
150 |
160 |
24 |
3 |
4.5 |
8-23 |
195 |
175 |
690 |
|
|
125 |
80 |
270 |
220 |
188 |
176 |
28 |
3 |
4.5 |
8-26 |
210 |
190 |
857 |
|
|
150 |
100 |
300 |
250 |
204 |
218 |
30 |
3 |
4.5 |
8-26 |
255 |
230 |
838 |
|
|
200 |
125 |
375 |
320 |
260 |
282 |
38 |
3 |
4.5 |
12-30 |
300 |
260 |
992 |
外形尺寸和连接尺寸：
|
WA42Y-64 |
25 |
16 |
140 |
100 |
58 |
78 |
22 |
2 |
4 |
4-18 |
110 |
100 |
277 |
|
32 |
20 |
155 |
110 |
66 |
82 |
24 |
2 |
4 |
4-23 |
130 |
110 |
289 |
|
|
40 |
25 |
170 |
125 |
76 |
95 |
24 |
3 |
4 |
4-23 |
130 |
120 |
319 |
|
|
50 |
32 |
180 |
135 |
88 |
105 |
26 |
3 |
4 |
4-23 |
135 |
130 |
389 |
|
|
65 |
40 |
205 |
160 |
110 |
130 |
28 |
3 |
4 |
8-23 |
175 |
160 |
493 |
|
|
80 |
50 |
215 |
170 |
121 |
140 |
30 |
3 |
4 |
8-23 |
175 |
160 |
483 |
|
|
100 |
65 |
250 |
200 |
150 |
168 |
32 |
3 |
4.5 |
8-26 |
195 |
195 |
613 |
|
|
150 |
100 |
345 |
280 |
204 |
240 |
38 |
3 |
4.5 |
8-34 |
280 |
265 |
894 |
|
|
WA42Y-100 |
25 |
16 |
140 |
100 |
58 |
78 |
24 |
3 |
4 |
4-18 |
110 |
100 |
277 |
|
32 |
20 |
155 |
110 |
66 |
82 |
24 |
2 |
4 |
4-23 |
130 |
110 |
289 |
|
|
40 |
25 |
170 |
125 |
76 |
95 |
26 |
2 |
4 |
4-23 |
130 |
120 |
319 |
|
|
50 |
32 |
195 |
145 |
88 |
112 |
28 |
3 |
4 |
4-26 |
135 |
130 |
389 |
|
|
65 |
32 |
220 |
170 |
110 |
138 |
32 |
3 |
4 |
8-26 |
175 |
160 |
493 |
|
|
80 |
40 |
230 |
180 |
121 |
148 |
34 |
3 |
4 |
8-26 |
175 |
160 |
483 |
|
|
100 |
50 |
265 |
210 |
150 |
172 |
38 |
3 |
4.5 |
8-30 |
195 |
195 |
613 |
|
|
150 |
80 |
355 |
290 |
204 |
250 |
46 |
3 |
4.5 |
12-34 |
280 |
265 |
894 |
