聚丙烯熔喷滤芯

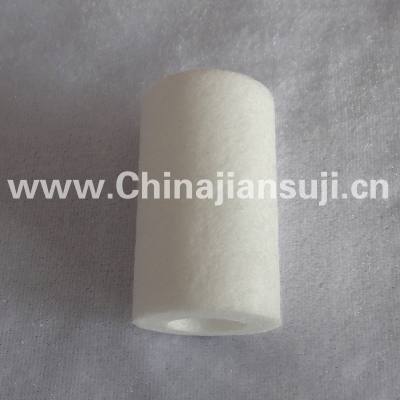

Polypropylene melt blown filter

产品介绍 / Product Introduction

聚丙烯熔喷滤芯（又称PP滤芯）是一种采用无毒无味聚丙烯为原料，经过加热熔融，喷射、牵引、接收成型而制成的滤材。pp滤芯具有孔径均匀，外疏内密的深层过滤结构，并具有过滤效率高，耐酸碱的优良特性。能有效地除去液体中的悬浮物、微粒、铁锈等杂质。不仅在水净化大批量使用。还具有杰出的化学兼容性，适用于强酸、强碱及有机溶剂的过滤。过滤效率高、压力损失小，过滤效率稳定、使用寿命长，过滤成本低、安全性好、适应性强。

Polypropylene melt blown filter (also known as PP filter) is a filter which adopts non-toxic, tasteless polypropylene as raw material, made of through heating and melting, injection, traction, receiving shaping. PP filter has uniform pore size, the dense outer sparse depth filter structure, and high filtration efficiency, acid and alkali resistant excellent features. It could effectively remove suspended solids, particulates, rust and other impurities in the liquid. Not only in the use of large quantities of water purification, Also has excellent chemical compatibility, can be used for filtering acids, alkalis and organic solvents, high filtration efficiency, low pressure loss, stable filtration efficiency, long life, low cost filter, safety, adaptability.


产品性能及特点 / Product performance and features

能有效去除所过滤液体中的各种颗粒杂质；
可多层式深度结构，纳污量大，使用寿命长；
过滤流量大，压差小；
不含任何化学粘合剂，更卫生，安全；
成本低廉，更换简便。
耐酸、碱、有机溶液、油类，有良好的化学稳定性；
集表面、深层、粗精滤为一体；具有流量大、耐腐蚀耐高压低成本等特点。用以阻挡水中的铁锈、泥沙、虫卵等大颗粒物质。

Can effectively remove a variety of particle impurities in the liquid.
Can be multi-layered depth filtration, pollutant carrying capacity, long life.
High filtration flow, small pressure difference.
No chemical binders, more healthy and safe.
Acid, alkali, organic solvents, oils resistant good chemical stability.
Low cost, easy to change.
Set the surface, deep, coarse filter, fine filter as a whole; With big flow, corrosion
resistance, high pressure and low cost features, to stop the rust, sediment, eggs
and other large particulate matter in the water.


应用领域 / Application Fields

饮用水及食品业、水处理相关等系统。
R.O.及一般水处理等。
化学制程中酸碱液体之过滤。
化工原料、有机溶剂之过滤；水溶性油漆、油料、涂料之过滤系统。
食用油、蔬菜油之过滤。
电着涂装(ED)、化学药液之过滤;机械用油、切削油、重油、燃油之过滤。
糖浆、巧克力等各式浆液之过滤。
显像用药液、墨水之过滤； PCB药液之过滤。
无菌水、超纯水之前置过滤处理。
工业用水、电镀液之过滤、工业用纯水过滤前置系统。


Drinking water industry and food industry related water treatment system.
R.O. and normal water treatment, etc.
Soda acid liquid filtration during chemical process.
Chemicals, organic solvents filtration; water-soluble paint, oil, paint filtration system.
Cooking oil, vegetable oil filtration.
Syrups, chocolate and other kinds of slurry filtration.
Liquid for imaging using, ink filtration; PCB liquid filtration.
Sterile water, ultra-pure water pre-filtration treatment.
Industrial water, plating solution filtration, the industrial pure water filtration prefixion system.
Electrodeposition coating (ED), a chemical liquid filtration; machinery oil, cutting oil, heavy oil, fuel filtration.


四、 参数说明 / Parameter Specification

长度(Length)：5"、10"、20"。
外径(Outer Diameter)：60-65mm
内径(Inner Diameter)：15mm、20mm、 25mm 、28mm 、30mm、 35mm。
流量(Flow)：(0.1MPa)1-2T/h
最高适用温度(Highest suitable working temperature)：60℃ 。 耐压(Working Pressure)：0.4 Mpa
精度(Precision)：1μm、5μ m、10μ m、20 μm、30μm、50μm、100μm。
